LM3886 Special Edition Amplifier Board Building And Testing 🔊 IndianXtremeAudio

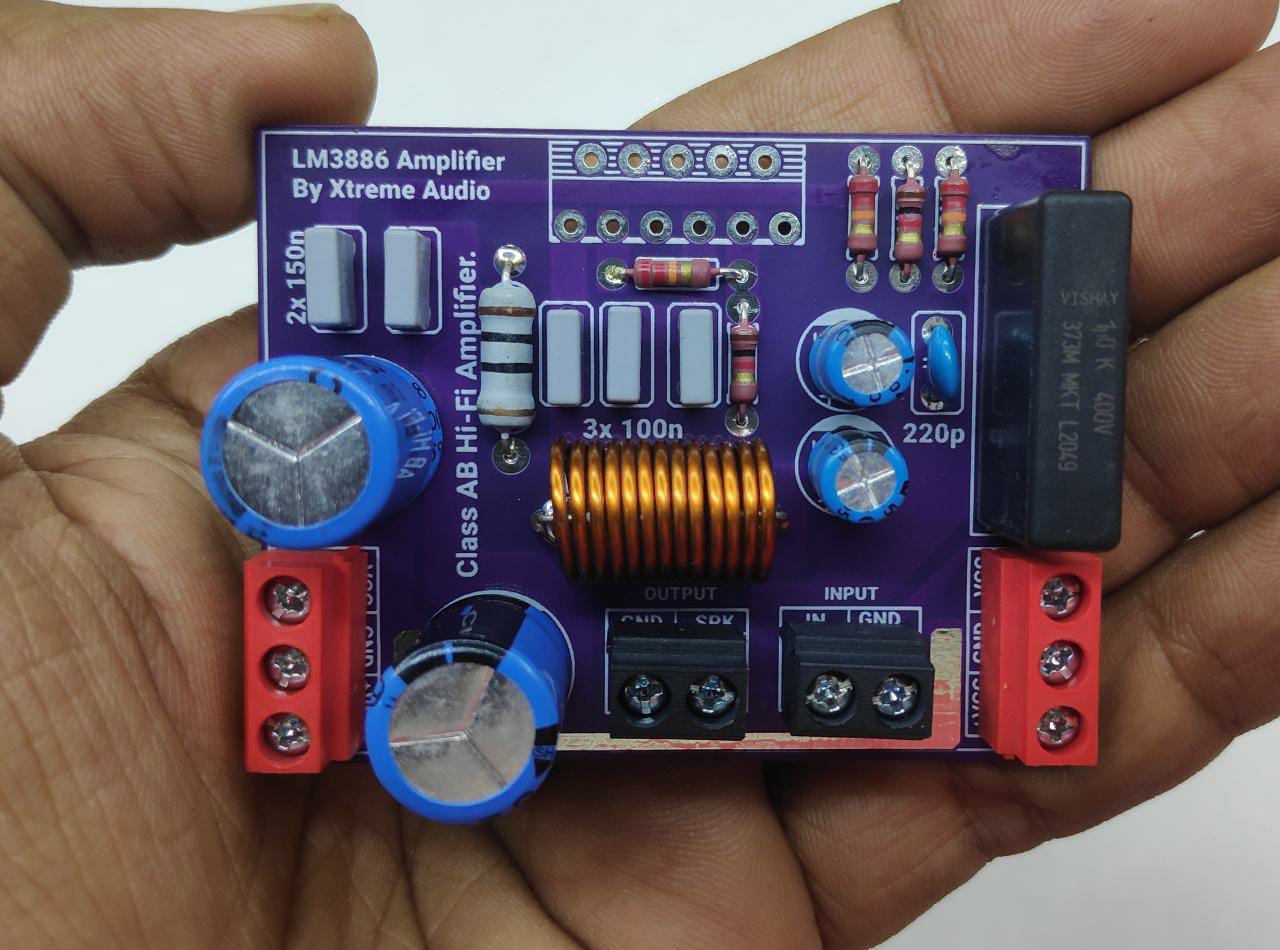

 In this project we made an amplifier using Hi-fi and popular LM3886 Gainclone Amplifier IC. Many of us wants to make Virtual 5.1 or 7.1 Music System with this ic, but due to a lot of wiring we made a design with expandable feature, This Circuit has inbuilt Zobel Network,


ABOUT THE PERFORMANCE



The LM3886 is a high performance audio power amplifier capable of delivering 68W of continuous average power to a 4 Ohms load and 38W into 8 Ohms Load with 0.1% THD+N from 20Hz - 20Khz.


The performance of the LM3886, utilizing its self peak instandaneous TEMPRATURE ( SPIKE ) Protection Circuitry, Puts It in a class Above Discrete and hybrid amplifiers by providing an inherently, dynamically protected Safe Operating Area. SPIKE Protection means that these parts are completely Safegaurded at the output against OVERVOLTAGE, UNDERVOLTAGE, OVERLOADS, Including shorts to the supplies, thermal runaway, and instantenous temprature peaks,


The LM3886 Maintains an excellent signal to noise ratio of greater than 92dB with a typical low noise floor of 2.0 uV. it exhibits extremely low THD+N Values of 0.03% at the rated output into the rated load over the audio spectrum, and provides excellent linearity with an IMD typical rating of 0.004%.


FEATURES


✽ 68W Continuous Average Output Power at 4 ohms at Vcc = ±28V

✽ 38W Continuous Average Output Power at 8 ohms at Vcc = ±28V

✽ 50W Continuous Average Output Power at 8 ohms at Vcc = ±35V

✽ 135W Instant Peak Power Output Capability

✽ Signal to noise ratio >92dB

✽ Input Mute Function

✽ Output Portection from short to ground or to the supplies via internal current limiting circuitry

✽ Output Over Voltage Protection against Transients from Inductive Loads

✽ Wide Supply Range 20V - 94V



APPLICATIONS


✽ Component Stereo

✽ Compact Stereo

✽ Self-powered speakers

✽ Surround Sound Amplifiers

✽ High End Stereo TVs

✽ Studio Monitors

✽ Active Towers



BILL OF MATERIALS BILL OF MATERIALS RESISTORS QTY VALUE 3X 22K ohms 1/4 Watts 2X 1K ohms 1/4 Watts 2X 10 Ohms 1 Watts CAPACITORS 2X 150nf 100V NON POLAR 3X 100nf 100V NON POLAR 1X 220pf 100V Polyster 1X 2.2uf 250V NON POLAR 2X 470uf 63V Electrolytic 2X 100uf 63V Electrolytic ICs 1X LM3886TF GAINCLONE AMPLIFIER IC CONNECTORS 2X 2 PIN SCREW TERMINAL BLOCK 2X 3 PIN SCREW TERMINAL BLOCK Refer the tutorial Video INDIAN XTREME AUDIO Link- https://www.youtube.com/watch?v=Icin6rnPTDs&t=698s



Project Gerber, and pcb layout pdf is given in the videos Description.


LM3886 Special edition Amplfier Board Tutorial
